Cellular Amplifier GSM 2G 900 3G UMTS 2100 4G LTE 1800MHZ DCS Signal Booster Cell Mobile Phone + Antenna + 10m Cable Repeater
Cellular Amplifier GSM 2G 900 3G UMTS 2100 4G LTE 1800MHZ DCS Signal Booster Cell Mobile Phone + Antenna + 10m Cable Repeater
SPECIFICATIONS
Accessories: Outdoor antenna, indoor antenna, 10m cable
Brand Name: lintratek
Cellular Amplifier: GSM 2G 3G 900MHZ / UMTS WCDMA 2100 / DCS LTE 1800
Certification: NONE
Choice: yes
GSM 900mhz: UL:890-915mhz DL:935-960mhz
Gain(dB): 65dB
High-concerned chemical: None
Internal antenna: 5dbi whip antenna
LTE 1800mhz (B3): UL:1710-1785mhz DL:1805-1880mhz
Model Number: KW13A series
Origin: Mainland China
Outdoor antenna ( for 1800/2100mhz): 13dbi yagi antenna
Outdoor antenna ( for 900mhz): 8 dbi yagi antenna
RF Connector: SMA Connector
Specification: 10m
WCDMA 2100mhz (B1): UL:1920-1980mhz DL:2110-2170mhz
semi_Choice: yes
Single Band Booster 2G/3G/4G
Model Name: KW13A
65dB / LCD display / Mini but powerful

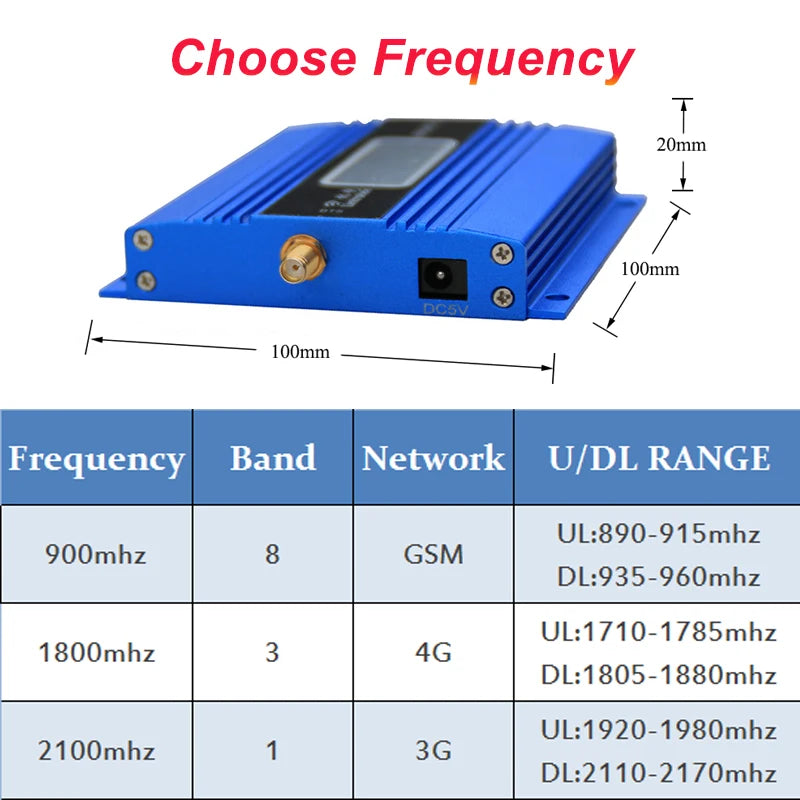

Frequency Choose
This ia a single band booster kit, please check your frequency first.
Usually,
900mhz for GSM voice call;
1800mhz for 4G LTE (Band 3);
2100mhz for 3G UMTS (Band 1)
Band |
Frequency |
Network |
U/DL RANGE |
GSM |
900mhz |
2G 3G |
UL:890-915mhz |
B3 |
1800mhz |
LTE 4G |
UL:1710-1785mhz |
B1 |
2100mhz |
3G |
UL:1920-1980mhz |
Main Selling Points

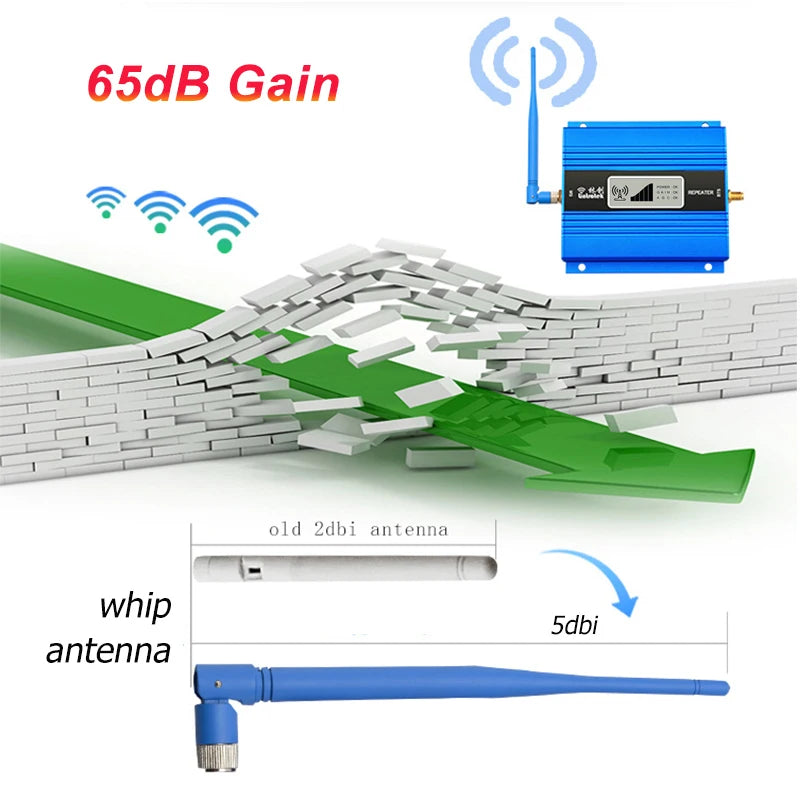

• 65dB gain, small but powerful enough. First choice for home/small office/basement use.
• With LCD Display, can know the real-time signal situation.
• Lintratek customized exquisite packaging box, It is convenient for you to bring it on business trips or travel.
• Easy to install.
• Coverage area: cover about 100~300sqm without barrier.

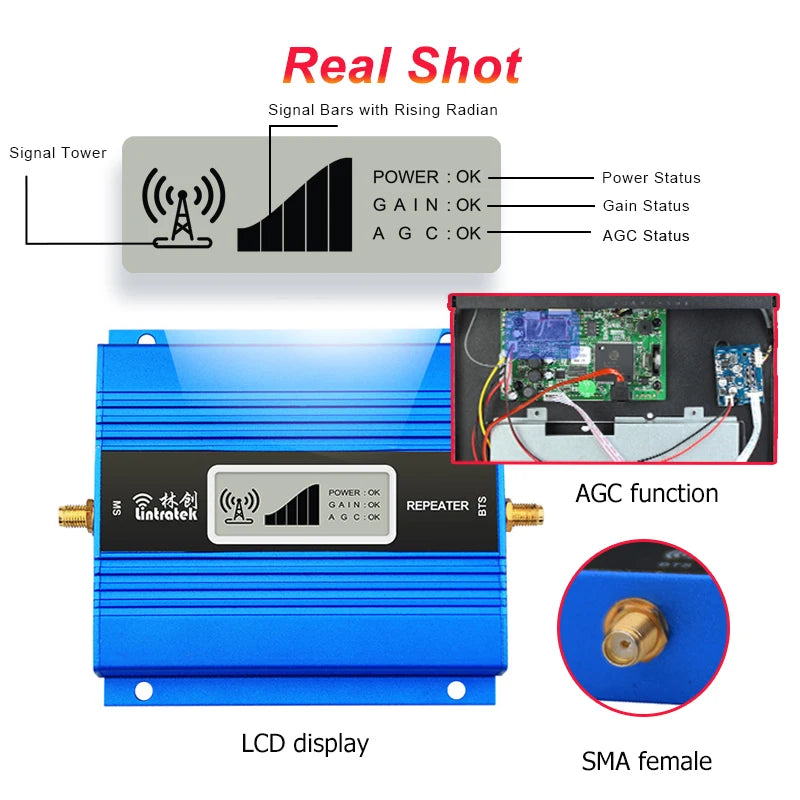

Real shot
Buyer show
★★★★★

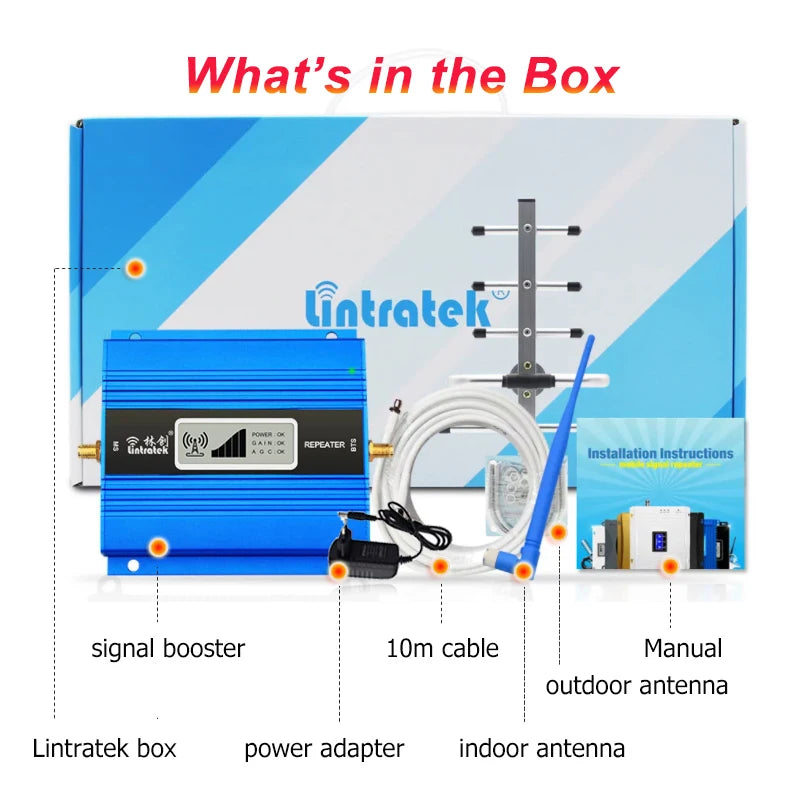

What's in the box
1. Booster
2. Outdoor yagi antenna
3. Indoor whip antenna
4. 10m cable (SMA connector)
5. manual book
6.power supply
7.tape
Accessories
① Outdoor yagi antenna
8-unit:13dbi, for 1800 2100mhz booster
5-unit: 8dbi, for 900mhz booster
② Indoor whip antenna
③ 10m cable
④ Power supply
(please tell us what plug type you need after placing an order)

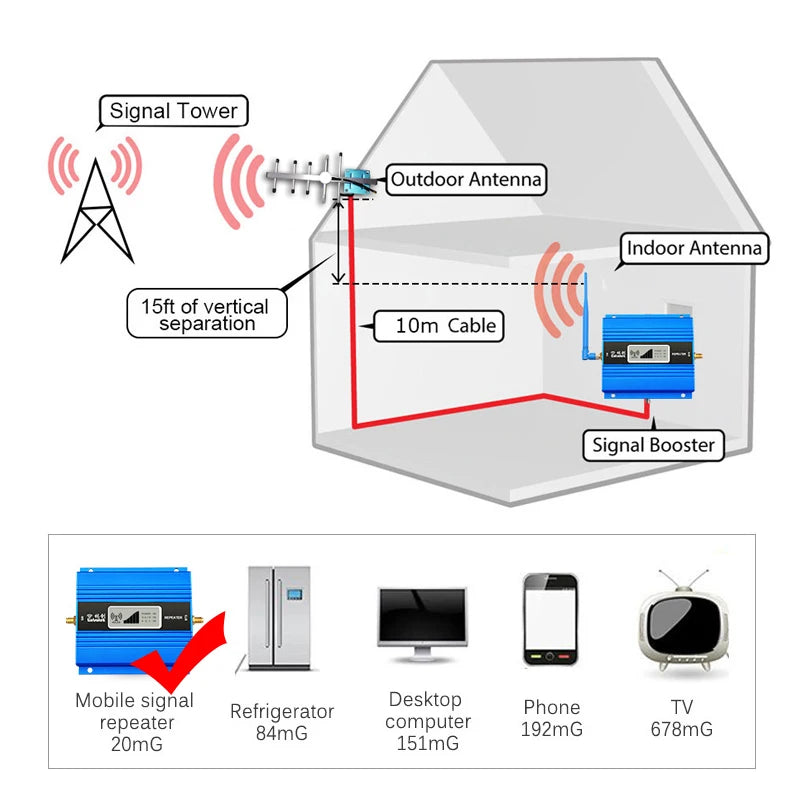

Installation
Step 1
Search a position where can receive good signal(stronger than -80dB). Parallelly installing the outdoor antenna on that location, towards to the base station or cell tower.
Step 2
Use coaxial cable to connect the outdoor antenna and the BTS port of signal booster.Another MS port of the signal booster is to connect the indoor antenna. Please ensure all were tightened joints, connected well.
Step 3
After finished all parts then check whether all connection is well, now you can turn on the power and check your mobile phone signal strength.
